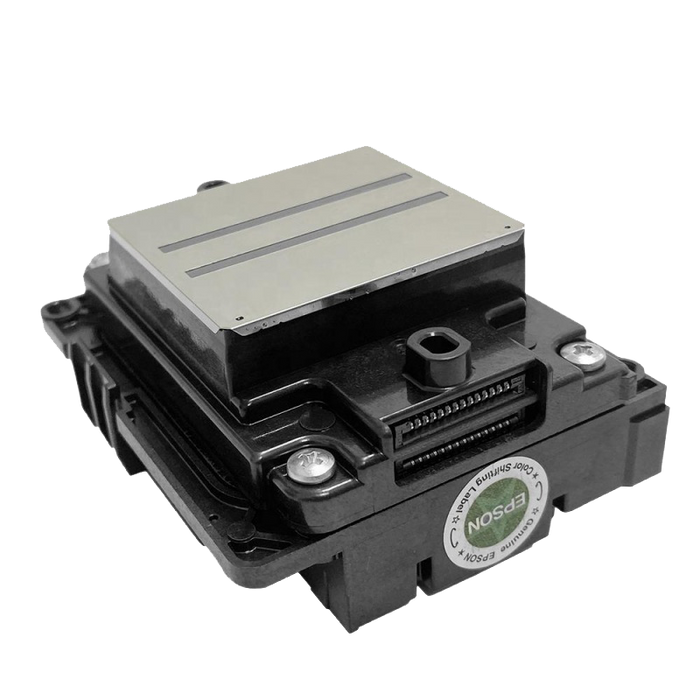

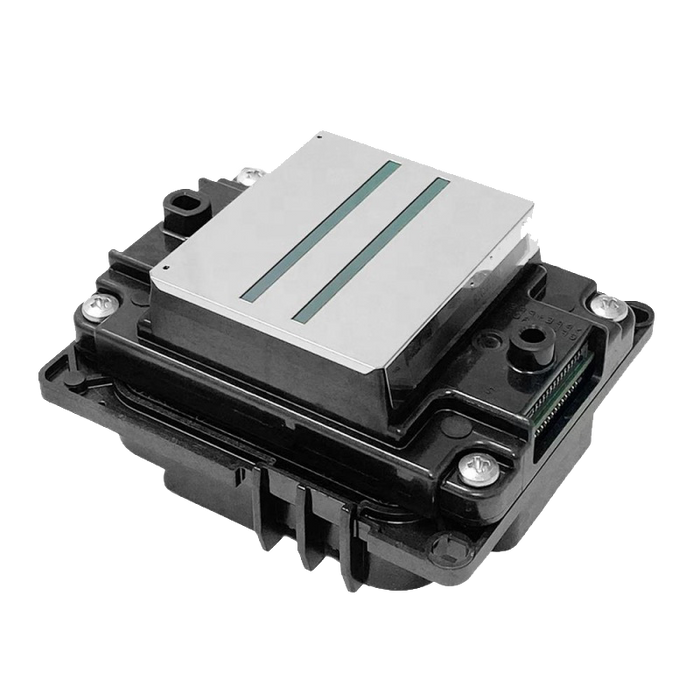

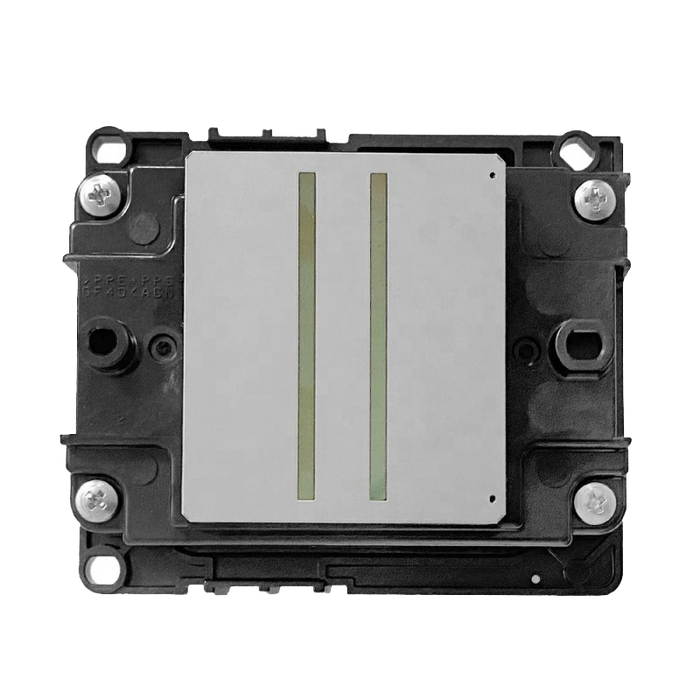

Epson I1600-U1 UV Printhead
The Epson I1600-U1 UV Printhead is a compact, cost-effective industrial printhead designed for UV-curable ink applications. Built with Epson’s PrecisionCore MicroTFP technology, this printhead delivers reliable performance, sharp image quality, and efficient production output for compatible UV printing systems.
With 1,600 nozzles, 600 dpi-class resolution, and a 1.33" print width, the Epson I1600-U1 is well suited for UV flatbed printers, UV DTF systems, UV roll-to-roll printers, signage printers, label printers, and other compatible industrial UV applications.
Key Features
- Designed for UV-curable ink systems
- Epson PrecisionCore MicroTFP printhead technology
- 1,600 total nozzles across 4 nozzle rows
- 600 npi / 2-row nozzle resolution for sharp, detailed output
- 1.33" / 33.8 mm effective print width
- Supports up to 4 color channels
- Compact printhead design for compatible UV printer platforms
- Suitable for UV flatbed, UV DTF, UV roll-to-roll, label, signage, and industrial printing applications
Technical Specifications
| Feature | Epson I1600-U1 |
|---|---|
| Printhead Type | PrecisionCore MicroTFP |
| Ink Compatibility | UV-curable inks |
| Total Nozzles | 1,600 |
| Nozzle Rows | 4 rows |
| Nozzle Pitch | 1/300 inch |
| Nozzle Resolution | 300 npi/row, 600 npi/2 rows |
| Max Color Channels | 4 colors |
| Effective Print Width | 1.33" / 33.8 mm |
| Droplet Performance | 5 pl at up to 43.2 kHz |
| Viscosity Range | 5–7 mPa·s |
| Dimensions | 69.1 × 59.4 × 35.6 mm |
| Weight | Approx. 80–82 g |
Common Applications
The Epson I1600-U1 UV Printhead is commonly used in:
- UV flatbed printers
- UV DTF printers
- UV roll-to-roll printers
- Signage printers
- Label printers
- Industrial product decoration
- Packaging and specialty UV printing
Printer Compatibility
The Epson I1600-U1 UV Printhead is compatible with select UV printers from Nocai, Signstar, and Sinocolor.
Compatible models include:
Nocai: NC-UV0609PEⅢ-Ⅱ
Signstar: UR-0603
Sinocolor: FB-0906D, FB-1612D, UE-2000D
Compatibility Notice
Please confirm your printer model, ink type, cable configuration, and system compatibility before ordering. Compatibility may vary by printer setup and manufacturer configuration.
