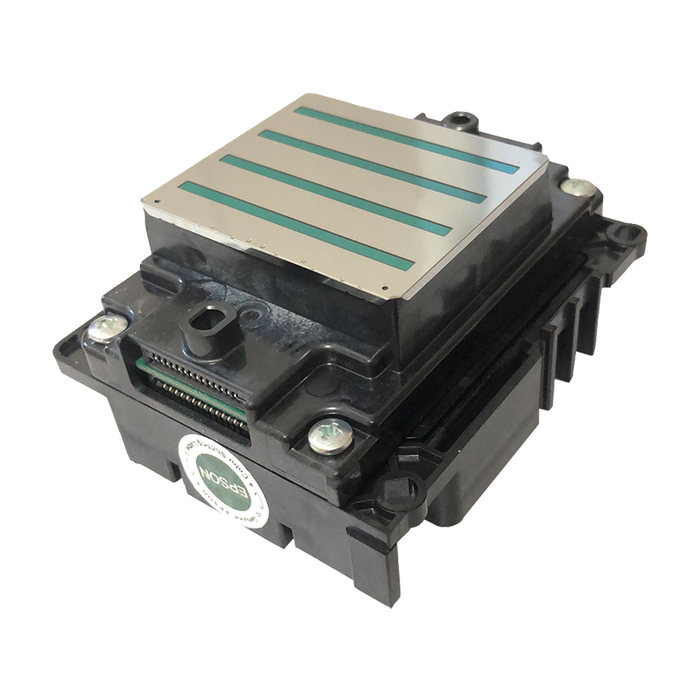

Epson i3200-U1 Printhead
The Epson i3200-U1 Printhead is a high-performance printhead designed for UV-curable ink applications, including UV flatbed printers, UV DTF printers, UV roll-to-roll systems, industrial packaging printers, and label printers.
Built with 1,600 nozzles, 600 dpi resolution, and a 1.33" print width, the Epson I3200-U1 delivers sharp image quality, reliable ink jetting, and efficient production output for compatible UV printing systems.
Key Features
- Designed for UV-curable inks
- Ideal for UV flatbed, UV DTF, roll-to-roll, packaging, and label printing
- 1,600 total nozzles across 4 color channels
- 600 dpi nozzle resolution for sharp, detailed output
- 1.33" / 33.8 mm print width
- Main drop size of approximately 6 picoliters
- Maximum frequency up to 43.2 kHz
- Reliable performance for compatible industrial UV printers
Technical Specifications
| Feature | Epson i3200-U1 |
|---|---|
| Nozzles | 1,600 / 4 color channels x 400 |
| Nozzle Resolution | 600 dpi |
| Main Drop Size | Approx. 6 pl |
| Max Frequency | 43.2 kHz |
| Print Width | 1.33" / 33.8 mm |
| Viscosity Range | 3 to 5 mPa·s |
| Ink Compatibility | UV-curable inks |
Common Applications
The Epson I3200-U1 is commonly used in:
- UV flatbed printers
- UV DTF printers
- UV roll-to-roll printers
- Industrial packaging printers
- Label printers
Printer Compatibility
The Epson I3200-U1 Printhead is compatible with select UV printers from Audley, Nocai, Signstar, Sinocolor, Textek, and Xante.
Compatible models include:
Audley: ADL6003UV
Nocai: NC-Cyclone-400, NC-UV0609MAX
Signstar: BT-1804UN, UV-6090, UX-1802
Sinocolor: FB-0906D, FB-2513S, HUV-2000S, HUV-2600S, HUV-3200S, UE-2000D, UR-2000S, UR-3200S, UR-5000S, UV-1260S, UV-740S
Textek: UV-F604
Xante: X-33
Compatibility Notice
Please confirm your printer model, ink type, cable configuration, and system compatibility before ordering. This printhead is intended for UV-curable ink applications only.
