Mimaki JFX200-2513 wide-format flatbed printer is a smaller footprint model with the same operational features of the larger JFX500-2131 printer. With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. It is ideally suited for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels and more. Its 4’x 8’, landscape-oriented format is small enough to fit into most sign and graphic print shops. White, clear and inks are available. The UV-LED lamps offer reduced energy consumption and a longer lamp lifetime.

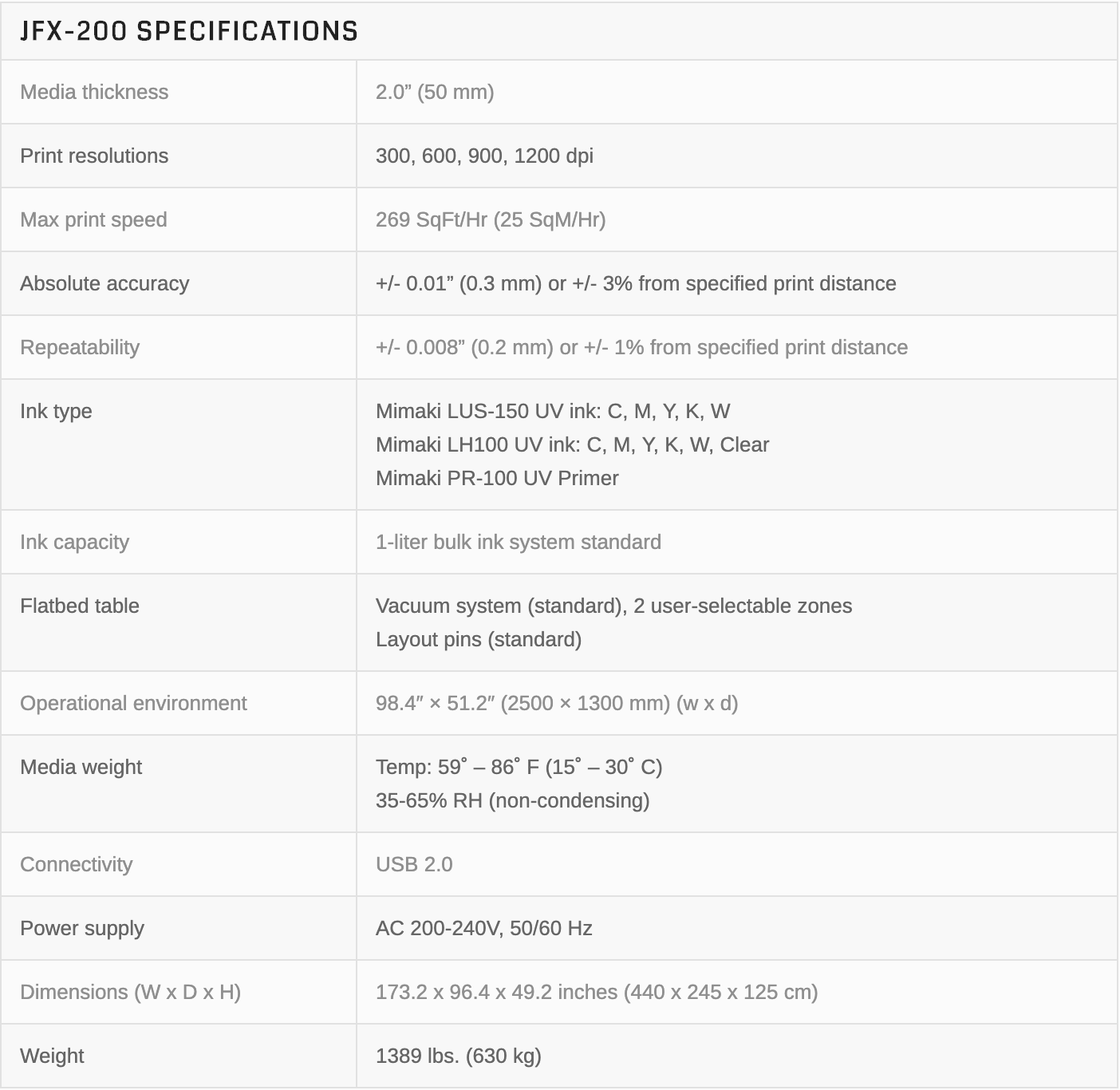

Print system On-demand piezo
(2 printheads in a staggered configuration)
Max print area/
Max media size
98.4” W x 51.1” L
(2500 x 1300 mm)
Media thickness Up to 2.0” (50 mm)
Print resolutions 300, 450, 600, 900, 1,200dpi
Max print speed 269 SqFt/Hr (25 SqM/Hr)
Absolute accuracy +/- 0.01” (0.3 mm) or +/- 3% from specified print distance
Repeatability +/- 0.008” (0.2 mm) or +/- 1% from specified print distance
Ink type Mimaki LUS-150 UV ink: C, M, Y, K, Lc, Lm, W
Mimaki LUS-200: C, M, Y, K, W
Mimaki LH100 UV ink: C, M, Y, K, W, Clear
Mimaki PR-100 UV Primer
Mimaki PR-200 UV Primer
Ink capacity 1-liter bulk ink system standard
Flatbed table Vacuum system (standard), 2 user-selectable zones
Layout pins (standard)
Operational environment Temp: 59˚ – 86˚ F (15˚ – 30˚ C) 35-65% RH (non-condensing)
Media weight 50 kg/㎡ (10.2 lb./ft2), non-concentrated load
Connectivity USB 2.0
Power supply AC 200-240V, 50/60 Hz
Dimensions (W x D x H) 173.2 x 96.4 x 49.2 inches (440 x 245 x 125 cm)
Weight 1389 lbs. (630 kg)
