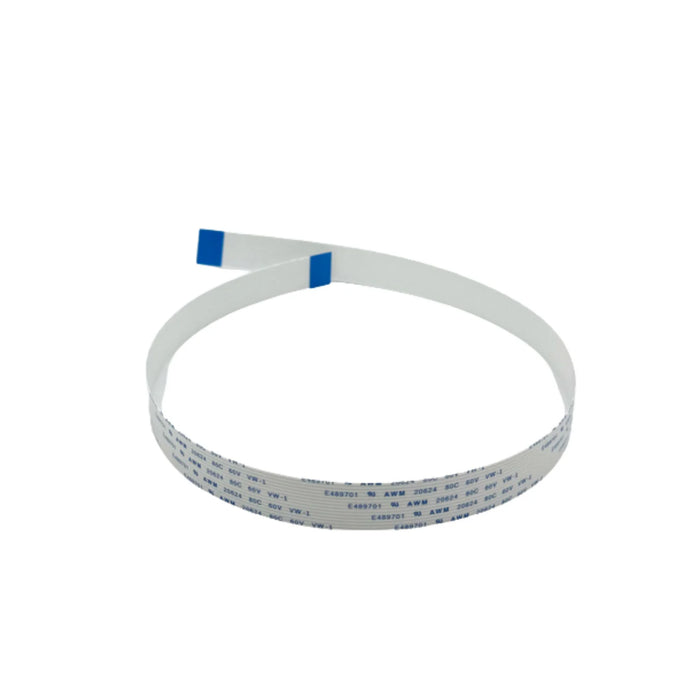

Epson I1600 14-Pin Printhead Cable 17.5 in (450 mm)
The Epson I1600 14-Pin Printhead Cable is a flat flexible cable designed to transfer firing and control signals between a compatible printer’s carriage board and printhead interface. Measuring 17.5 inches, or approximately 450 mm, this cable provides the connection length commonly required in DTF, UV, and eco-solvent printer configurations using Epson PrecisionCore I1600 or I3200 printhead platforms.
The cable features a 14-pin connector, 15 mm width, and 0.5 mm pitch. These specifications must match the printer’s existing cable and board interface to support proper installation and signal transfer.
Key Features
- Flat Flexible Cable (FFC) for printhead signal transmission
- 14-pin connector configuration
- 17.5-inch, approximately 450 mm, cable length
- 15 mm cable width
- 0.5 mm contact pitch
- Suitable for compatible Epson I1600 and I3200 PrecisionCore printer setups
- Used in compatible DTF, UV, and eco-solvent printing systems
Technical Specifications
- Product Type: Printhead flat flexible cable
- Connector Count: 14 pins
- Length: 17.5 inches / approximately 450 mm
- Width: 15 mm
- Pitch: 0.5 mm
- Primary Application: Carriage-board-to-printhead signal connection
- Compatible Platforms: Epson I1600 and I3200 in supported configurations
Installation Recommendation
An Epson I1600 printhead installation typically uses four matching 14-pin cables. Replacing all four cables when installing a new printhead is recommended, especially if the existing cables are bent, creased, contaminated with ink, or have damaged contacts.
Reusing damaged or contaminated cables may increase the risk of signal faults, short circuits, or damage to the printhead electronics.
Compatibility Notice
Some printer manufacturers use a 16-pin cable variant instead of the 14-pin configuration. Before ordering, verify the pin count, cable length, width, pitch, contact orientation, and printer interface.
Contact Digital Print Supplies for assistance confirming compatibility before purchasing.
