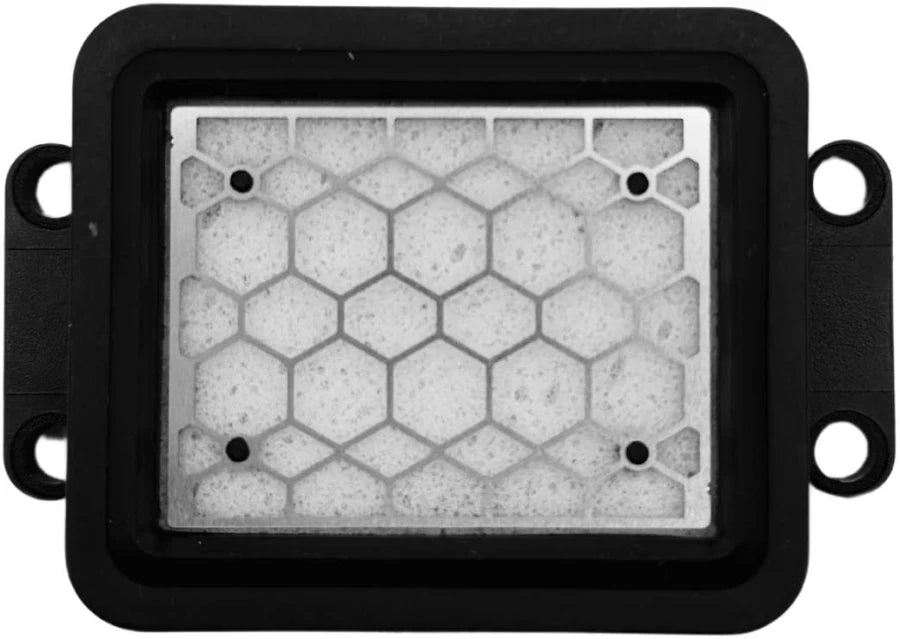

Epson I3200 Hexagon Printhead Capping Station for DTF & UV Printers

Epson I3200 Hexagon Printhead Capping Station for DTF & UV Printers

SKU
$24.50 - $24.50
$24.50
$24.50 - $24.50
$24.50

The Epson I3200 Printhead Capping Station – Hexagon Design is a replacement maintenance component designed for compatible Direct-to-Film (DTF) and UV printing systems. When the printhead carriage returns to its home position, the capping station seals around the nozzle plate to help retain moisture, maintain vacuum, and reduce air exposure while the printer is idle.

The specialized internal hexagon structure is designed to distribute vacuum pressure across the cap-top surface while increasing the available sealing area. This supports more consistent contact with the printhead and helps the printer’s maintenance system perform suction, purge, and cleaning cycles. Proper capping may help reduce nozzle dry-out, ink evaporation, and clogging caused by an inadequate seal.

Key Features

  • Hexagon-style internal cap-top structure
  • Designed to support even vacuum-pressure distribution
  • Helps retain moisture around the printhead nozzle plate
  • Supports automated suction, purge, and cleaning cycles
  • Suitable for compatible DTF and UV printer configurations
  • Designed for Epson I3200-A1, I3200-E1, and I3200-U1 printheads
  • Available for systems using standard 2 mm or 3 mm connection fittings

Technical Specifications

  • Product Type: Printhead capping station
  • Design: Hexagon internal structure
  • Compatible Printhead Series: Epson I3200
  • Supported Variants: I3200-A1, I3200-E1, and I3200-U1
  • Printer Applications: DTF and UV printing systems
  • Connection Ports: Standard 2 mm or 3 mm fittings
  • Primary Functions: Sealing, vacuum maintenance, and moisture retention
  • Suggested Replacement Interval: Approximately 4–6 months in industrial-use environments

Maintenance and Compatibility Notice

Replacement timing may vary based on printer usage, ink type, cleaning frequency, and operating conditions. Inspect the cap top regularly for dried ink, loss of suction, seal wear, or reduced cleaning performance.

Printer configurations may use different mounting points, tubing sizes, and cap-top layouts even when they use the same printhead. Confirm the hexagon design, fitting size, physical dimensions, and carriage configuration before ordering. Contact Digital Print Supplies for assistance confirming compatibility.
