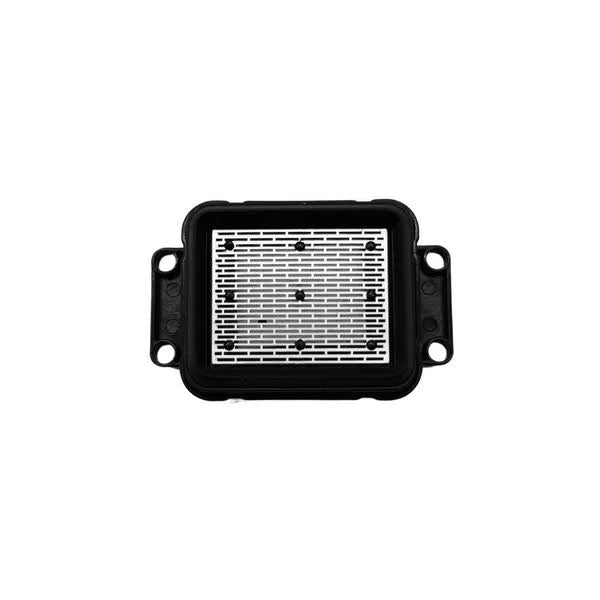

Epson I3200 Grid Printhead Capping Station for DTF & UV Printers
The Epson I3200 Printhead Capping Station – Grid Model is a replacement maintenance component designed to help protect the nozzle plate of compatible Epson I3200-series printheads. Commonly used in Direct-to-Film (DTF) and UV printing systems, the grid-style internal structure is designed to distribute vacuum pressure more evenly across the nozzle surface during capping and cleaning cycles.
When the printhead carriage returns to its home position, the capping station forms a moisture-retaining seal around the nozzle plate. This helps limit air exposure and reduce the risk of ink drying inside the nozzles while the printer is idle. During automated cleaning cycles, the grid structure supports consistent suction across the printhead surface, helping the maintenance system draw ink and cleaning fluid through the nozzle channels.
Key Features
- Grid-style internal structure for more uniform vacuum distribution
- Designed to support consistent contact across the printhead nozzle plate
- Helps retain moisture while the carriage is parked
- Supports automated purge, suction, and cleaning cycles
- May help reduce cleaning issues associated with uneven pressure or poor sealing
- Suitable for compatible high-volume DTF and UV printing environments
Technical Specifications
- Product Type: Printhead capping station
- Model Style: Grid
- Compatible Printhead Series: Epson I3200
- Supported Variants: Epson I3200-A1, I3200-E1, and I3200-U1
- Applications: Compatible DTF and UV printing systems
- Primary Functions: Nozzle sealing, moisture retention, vacuum distribution, and cleaning-cycle support
Compatibility Notice
This grid-model capping station is intended for compatible printer configurations using Epson I3200-A1, I3200-E1, or I3200-U1 printheads. Printer carriage assemblies, mounting points, tubing layouts, and cap-top designs may vary between equipment manufacturers.
Before ordering, compare the model style and physical configuration with the capping station currently installed in your printer. Contact Digital Print Supplies if you need assistance confirming compatibility before purchasing.
