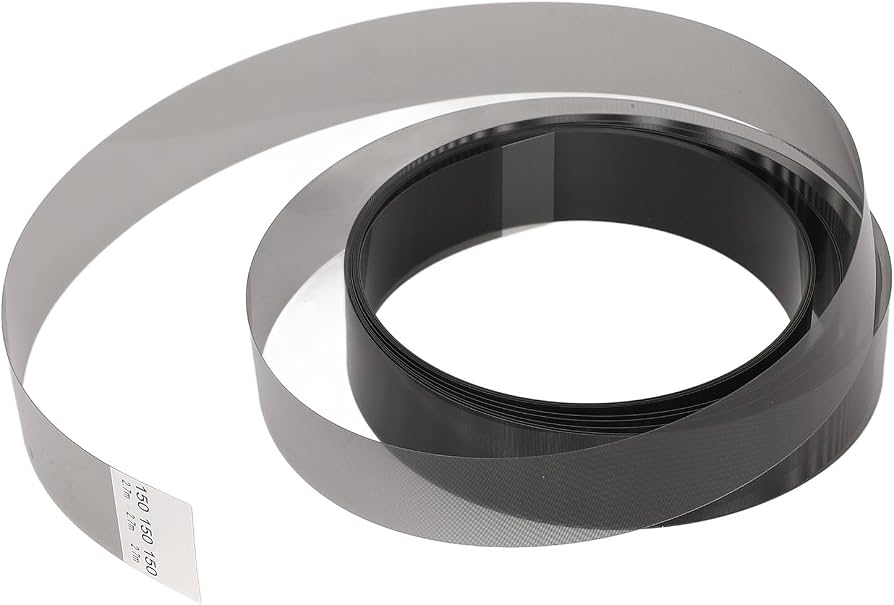

Encoder Strip 15 × 2800 mm for Large-Format Inkjet Printers
Maintain accurate print-carriage movement with this 15 × 2800 mm encoder strip, designed to provide precise linear positioning feedback in compatible large-format, direct-to-garment, and solvent inkjet printers.
The encoder strip features accurately spaced raster markings that are read by the printer’s encoder sensor as the carriage moves across the printing area. This positional feedback helps the printer control printhead movement and maintain proper alignment during operation.
Constructed from durable PET film, the strip is designed to resist heat and normal operational wear. A clean, properly installed encoder strip can help reduce carriage-positioning problems that may contribute to misalignment, banding, or ghosting.
Key Features
- Measures 15 mm wide × 2800 mm long
- Provides precise positional feedback for print-carriage movement
- Constructed from durable, heat-resistant, and wear-resistant PET film
- Features accurately spaced raster gradations
- Suitable for compatible large-format, DTG, and solvent printer systems
- Helps support accurate printhead positioning and consistent carriage movement
- Designed as a replacement for dirty, damaged, scratched, or worn encoder strips
Product Specifications
- Product type: Linear encoder strip
- Width: 15 mm
- Length: 2800 mm
- Material: PET film
- Scale options: 180 DPI or 150 LPI, depending on the required printer configuration
- Application: Print-carriage positioning and movement feedback
Printer Compatibility
This encoder strip may be used with compatible industrial inkjet printers and printhead configurations, including some systems equipped with DX5, DX7, or XP600 printheads.
Potential applications may include select printer models from manufacturers such as:
- Allwin
- Mimaki
- Xuli
- Zhongye
- Roland
Printer compatibility depends on the encoder strip’s exact dimensions, raster scale, sensor requirements, mounting configuration, and printer model. Confirm that the 15 × 2750 mm dimensions and required 180 DPI or 150 LPI scale match your printer before ordering.
Cleaning and Maintenance
Dust, ink mist, fingerprints, and other residue on the encoder strip can interfere with the encoder sensor’s ability to read the raster markings.
For routine cleaning:
- Turn off and unplug the printer.
- Use a clean, dry, soft dust cloth to gently wipe the strip.
- For stubborn residue, lightly dampen a lint-free cotton swab with isopropyl alcohol.
- Wipe gently without stretching, scratching, or bending the strip.
- Allow the strip to dry completely before operating the printer.
Avoid using abrasive cloths, excessive pressure, or harsh cleaning chemicals, as these may damage the printed gradations.
Important Ordering Information
Before purchasing, verify:
- Encoder strip width and length
- Required raster scale
- Printer make and model
- Encoder sensor specifications
- Mounting and tensioning configuration
