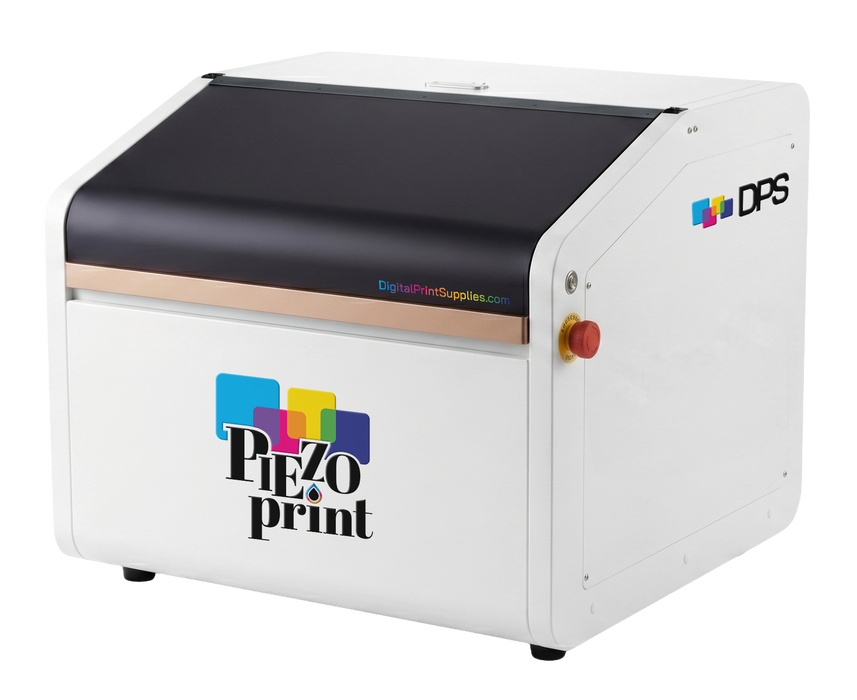

Piezo Print
Available exclusively from Digital Print Supplies, Piezo Print brings professional LED UV printing into a smart, compact desktop flatbed system designed for product decoration, promotional products, specialty graphics, and customized applications.
Designed for a simple and user-friendly printing workflow, Piezo Print combines high-precision flatbed printing with automatic media detection, one-click maintenance, and BEC1GO Technology for Braille, embossing, and color printing in one go.
Produce smooth, sharp, photorealistic graphics on a wide variety of materials while creating specialty effects including tactile Braille and raised 2.5D–3D printing.
Key Features
- 2.5D–3D UV Printing: Create raised effects, embossed graphics, tactile printing, and detailed color output.
- BEC1GO Technology: Braille, emboss, and color in one go.
- Automatic Media Detection: Intelligent material positioning and height recognition.
- One-Click Maintenance: Simplified cleaning routines for easier printer maintenance.
- Automatic Nozzle Calibration: Intelligent printing functionality designed to simplify printer setup.
- Automatic White Ink Adjustment: White layer control with automatic white ink adjustment.
- Smart UV Lamp Control: Intelligent control of the UV lamp during operation.
- Uni- and Bi-Directional Printing: Supports both printing directions.
- Optional 360° Rotary Printing: Expand into compatible cylindrical applications using the optional UNI360M rotary jig.
Print on a Wide Range of Materials
Piezo Print is designed for direct UV printing on a variety of rigid and specialty materials, including:
Wood • Leather • Plastic • PET • Acrylic • Steel • Stainless Steel • Aluminum • Glass • Ceramic and more
Built for Custom Products & Specialty Applications
Create customized and decorated products for a wide range of applications, including:
Phone cases, cups, cosmetic products, decorated bottles, promotional products, packaging, gifts, cards, accessories, golf balls, luggage and travel tags, small boxes, mobile accessories, and other specialty graphics.
Printer Specifications
| Model Name | Piezo Print |
| Printhead | Epson DX7 (189) |
| Table Size | 8.86" × 17.71" (22.5 × 45 cm) |
| Maximum Print Area | 7.50" × 12.20" (19 × 31 cm) |
| Maximum Material Thickness | Up to 6.02" (15.3 cm) |
| Printer Net Size (D × W × H) | 35.4" × 28.5" × 23.6" (90 × 72.5 × 60 cm) |
| Shipping Package Size (D × W × H) | 38.4" × 30.3" × 29.1" (97.5 × 77 × 74 cm) |
Printing Specifications & Speed
Printing speed measurements are based on a print area of approximately 7.48" × 12.20" (19 × 31 cm).
| Resolution | WW / KCMY | WW + KCMY |
|---|---|---|
| 720 × 720 DPI | 3 min 24 sec | 7 min 34 sec |
| 720 × 1440 DPI | 7 min 50 sec | 15 min 09 sec |
| 720 × 2880 DPI | 10 min 34 sec | 22 min 21 sec |
Print Direction: Uni-directional / Bi-directional
Profiled Surface Printing: Height difference compensation ±0.078" (2 mm)
Ink System
Piezo Print supports multiple UV ink options and ink channel configurations for different printing applications.
| Ink Type Options | UV Flexible Ink, UV Hard Ink, UV Waterproof Ink |
| Ink Channels | CMYK + WWWW / CMYK + CMYK |
| Ink Supply System | Ink Cartridge + Continuous Ink Supply |
| Ink Quantity | 130 g per cartridge × 8 cartridges |
| Nozzles | 8 Chambers; 360 × 8 nozzles |
| Ink Package | 1 set of ink cartridges (8 pcs) |
Consumable Ink Part Numbers
| Cyan | DTSAT3-UV01-C-01 |
| Magenta | DTSAT3-UV01-M-01 |
| Yellow | DTSAT3-UV01-Y-01 |
| Black | DTSAT3-UV01-K-01 |
| White | DTSAT3-UV01-W-01 |
Smart Features & Maintenance
| Maintenance | One-Click Cleaning |
| Auto Ink Charging | Ink Loading / Ink Preservation |
| Automatic Media Detection | Intelligent material positioning and height recognition |
| Intelligent Control | Smart Character Recognition; Smart UV Lamp Control |
| Intelligent Printing | Automatic Nozzle Calibration; White Layer Control with Automatic White Ink Adjustment |
| BEC1GO Technology | Braille • Emboss • Color in One Go |
| UV Cooling Method | Air Cooling |
Software & File Compatibility
RIP Software Compatibility:
CADLink, Flexi, WhiteRIP, Pietzo RIP, DevStudio RIP
Smart Integration:
Hot Folder based (Workstation V5.6), virtual printer setup, iCloud support, and INI setup.
Design software including Photoshop, Illustrator, and Corel Draw is supported.
Supported File Formats:
TIF, JPG, PDF, EPS, PS, PNG
Optional 360° Rotary Printing
Expand the Piezo Print into compatible cylindrical printing applications with the optional UNI360M rotary jig.
| Minimum Diameter | 0.59" (1.5 cm) |
| Maximum Diameter | 3.54" (9.0 cm) |
| Supported Rotary Jig | UNI360M |
Operating Requirements
| Interface / Connectivity | USB 2.0 / 3.0 |
| Operating System | Windows 7 / 8 / 10 / 11 |
| Operating Temperature | 59°F to 89.6°F (15°C to 32°C) |
| Humidity | 40%–70% RH |
| Sunlight | Avoid direct exposure |
| Power Input | 110V–220V, 50Hz–60Hz, max 3.0A |
Warranty
2-Year Limited Warranty.
Bring More Applications In-House
From customized promotional products and packaging to specialty graphics, tactile Braille, embossed designs, phone accessories, decorated bottles, cards, gifts, and more, Piezo Print delivers a compact UV printing platform built for a wide variety of creative applications.
Questions about the Piezo Print?
Contact Digital Print Supplies at (704) 628-7679 for additional information.
