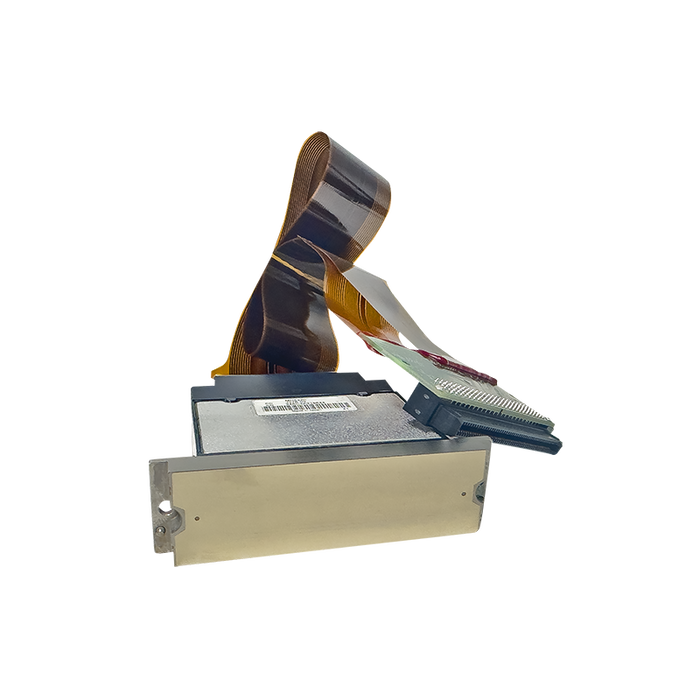

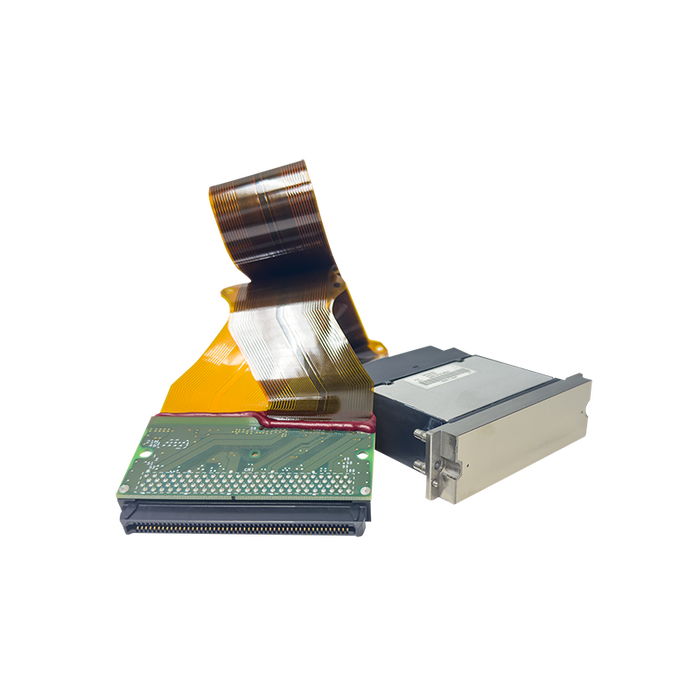

Ricoh GEN6 UV Printhead (Cable: 500mm)- MH5320

Ricoh GEN6 UV Printhead (Cable: 500mm)- MH5320

SKU GEN6-PRINTHEAD
Save $861.75 Save $861.75
$2,890.00
$2,890.00 - $2,890.00
$2,890.00
$2,028.25
$2,028.25 - $2,028.25
$2,028.25

The Ricoh Gen6 MH5320 printhead is designed for high-volume UV printing applications, delivering sharp detail, consistent output, and reliable performance across a wide range of UV printing systems. With 1,280 nozzles, 600 dpi native resolution, and variable drop sizes from 5–15PL, this printhead supports high-density output without sacrificing print quality.

Built for productivity, the Ricoh Gen6 MH5320 features jetting frequencies up to 50 kHz, making it a strong choice for demanding industrial UV print environments.

Key Features

  • Designed for high-volume UV printing
  • 1,280 nozzles in a 4 × 320 configuration
  • 600 dpi native resolution for sharp, detailed prints
  • 5PL main drop size with variable drops up to 15PL
  • Up to 4-level greyscale printing
  • Jetting frequency up to 50 kHz
  • Approx. 54.1 mm / 2.1" print width
  • Supports UV inks and is also compatible with solvent/aqueous inks
  • 447 mm cable length / approx. 500 mm total length
  • Works with a wide range of UV printers

Printer Compatibility

The Ricoh GEN6 UV Printhead - MH5320 with 500mm cable is compatible with select UV printers, including:

Compatible models: Hollanders Colorbooster 320, HYB2000, M5000, MC2512RV, PrintJet HYB2000, SG6 2030

Compatibility Notice

Please confirm your printer model, cable length, ink type, and system configuration before ordering. Compatibility may vary by printer setup.
