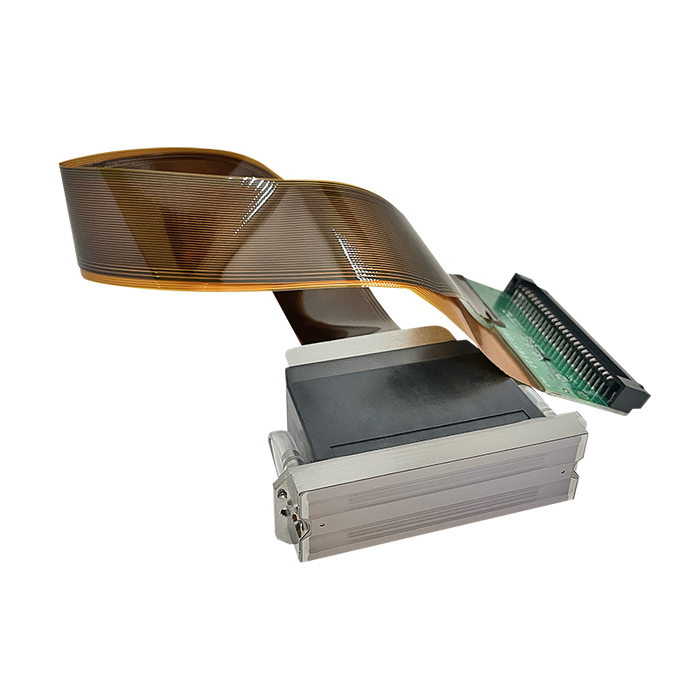

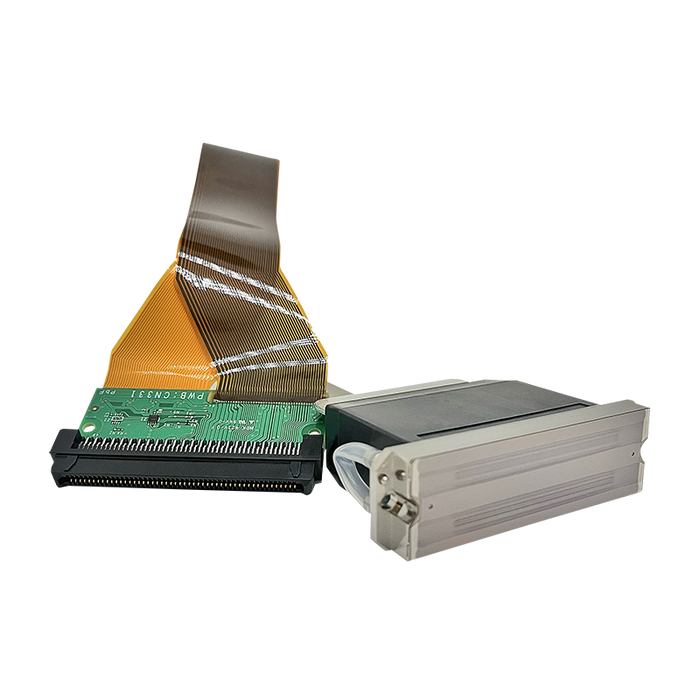

Ricoh GEN5 UV Printhead (Cable: 400mm) - MH5420
Ricoh Gen5 MH5420 7–35PL UV Printhead
The Ricoh Gen5 MH5420 UV printhead is designed for reliable performance in a wide range of UV and solvent printing systems. Built for mid-range industrial UV applications, this printhead features 1,280 nozzles, supports up to two ink channels, and delivers precise, consistent output for demanding production environments.
With a 7PL main drop size, variable drop output up to 35PL, and jetting frequencies up to 60 kHz, the Ricoh Gen5 MH5420 helps support smooth gradients, fine detail, and efficient print production. Its integrated heater and thermistor help maintain stable ink temperature for consistent ink viscosity and dependable performance.
Key Features
- Compatible with UV and solvent printers
- 1,280 nozzles in a 4 × 320 configuration
- 7PL main drop size, up to 35PL variable drop output
- Supports up to 2 ink channels
- Jetting frequency up to 60 kHz
- Approx. 54.1 mm / 2.1" print width
- Integrated heater and thermistor
- Approx. 400 mm cable length / 500 mm total length
- Designed for mid-range industrial UV printing systems
Printer Compatibility
The Ricoh GEN5 UV Printhead - MH5420 with 400mm cable is compatible with select UV printers from Agfa, Akad, CET Color, Docan, EFI, and Handtop.
Compatible models include:
Agfa: Jeti Mira MG2716 S/HS, Jeti Mira MG2732 S/HS, Jeti Tauro H2500, Jeti Titan HS, Jeti Titan S, Tauro H3300
Akad: NovaJet UV M6
CET Color: Q5-1000, Q5-1000h, Q5-250, Q5-250h, Q5-500, Q5-500h
Docan: 1212 UV, FR3210, FRT3116, M10, M6, M8
EFI: Pro 30F
Handtop: HT1600UV HR4, HT1610UV FR4, HT2500UV HR8, HT2512UV-D FR8, HT3116UV FR8, HT3200UV HG12, HT3200UV HR8
Compatibility Notice
Please confirm your printer model, cable length, ink type, and system configuration before ordering. Compatibility may vary by printer setup.
