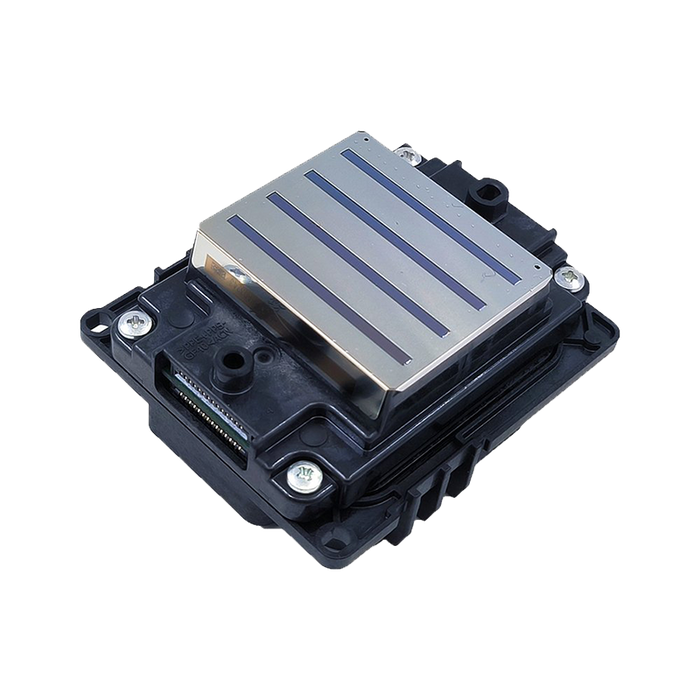

Epson i3200-A1 Water-Based Printhead

Epson i3200-A1 Water-Based Printhead

SKU
Save $161.97 Save $161.97
$1,245.92
$1,245.92 - $1,245.92
$1,245.92
$1,083.95
$1,083.95 - $1,083.95
$1,083.95

The Epson i3200-A1 Water Printhead is a cost-effective, high-performance 1.33" wide printhead designed for aqueous / water-based ink systems. Built for productivity and sharp image output, this printhead features a high-density 600 dpi resolution and 1,600 nozzles for clean, accurate printing across compatible DTF and aqueous printer platforms.

With variable droplet technology ranging from 3.8–12.3 pl, the Epson I3200-A1 Water delivers smooth gradients, crisp details, and reliable print quality for demanding production environments.

Key Features

  • Designed for water-based / aqueous inks
  • Cost-effective Epson printhead for compatible DTF and aqueous printers
  • 1.33" print width for high-production output
  • 600 dpi nozzle resolution for sharp, detailed printing
  • 1,600 total nozzles across 4 color channels
  • Variable droplet size from 3.8–12.3 pl
  • Maximum frequency up to 43.2 kHz
  • Reliable performance for compatible industrial and desktop DTF systems

Technical Specifications

Feature Epson i3200-A1 Water
Nozzles 4 color channels x 400 = 1,600
Nozzle Resolution 600 dpi
Droplet Size 3.8–12.3 pl variable droplet
Max Frequency Up to 43.2 kHz
Print Width 1.33" / 33.8 mm
Viscosity Range 3–4 mPa·s
Ink Compatibility Aqueous / water-based ink

Printer Compatibility

Compatible with many Epson I3200-based DTF and aqueous printers, including select models from Allwin, Coldesi, Fedar, Kingdom DTF / Andemes, LINKO, OKAI, Oric, Potry, Procolored, Rainbow, Roland, Sinocolor, Titanjet, Xin Flying, Xuli, Yindu Digital, Yite Technology, and Yuxunda.

Common compatible models include:

Allwin: AW-EP18, AW-EP19
Coldesi: 24H2 DTF, 24H4 DTF
Fedar: FD1900, FD5193E, FD5194E, FD5196E, FD5198E, FD60, FD61915E-A, FD6194E, FD6196E, FD6198E-A, FD65-2, FD70, FD70-5
Kingdom DTF / Andemes: Knight A1
LINKO / DTFLinko: A602, B8048, K-60, K-607, KM-602
OKAI: OK-H6002
Oric: AINKJET DTF Super, A3 Mini320, A-6202, A-6203, A-6204, OR-1601TX, OR-1602TX, OR-1802TX, OR-1912TX PRO, OR-1915 TX, OR-1916 TX, OR-3215 TX, OR-3216 TX, OR-3224 TX, OR-620 MAX, OR-620 Pro, OR-6202, OR-6203, OR-6204, OR-7602, OR-7604HT, OR-A3 Mini330 DTF
Potry: BC-0302X-HTO1, HT-0604IA-01
Procolored: K8, P13
Rainbow: Nova 6204
Roland: TY-300
Sinocolor: DTF-400A, WJ-240S
Titanjet: I1600/I3200 DTF Series
Xin Flying: I3200 DTF Series
Xuli: X6-1804IS, X6-1806IS, X6-1806IS S500
Yindu Digital: Industrial DTF I3200 Series
Yite Technology: Industrial DTF 5-Head I3200
Yuxunda: DTF-300 Pro Max, DTF-300plus, DTF-400 Pro Max, DTF-400plus, DTF-600 Pro Max

Compatibility Notice

Please verify your printer model, printhead type, ink type, cable configuration, and system compatibility before ordering. This printhead is intended for aqueous / water-based ink applications only.
